  • Standard air cylinder

  • Standard air cylinder
  • Standard air cylinder

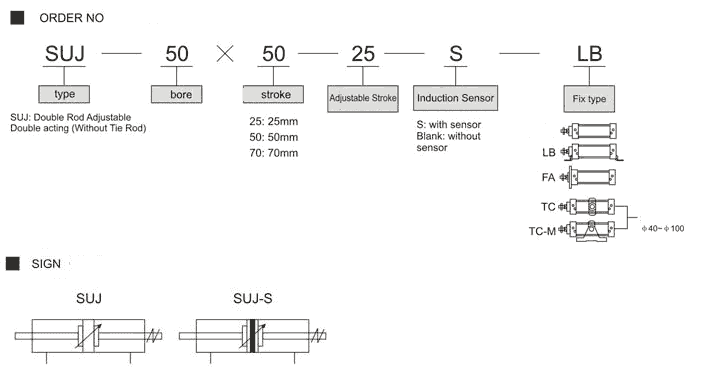

  • For example:
  • 1\If you want to order cylinder with 80mm bore,250mm stroke,adjustable stroke is 25mm,and magnet,which is the Double rod adjustable Double acting cylinder adopting LB fix type,the tight order Number is:SUJ-80×250-25-S-LB;
  • 2\If you want to order cylinder with 40mm bore,100mm stroke,adjustable stroke is 25mm,and No magnet,which is the Double rod adiustable Double acting cylinder adopting FA fix type,the right order Numder is::SUJ-40×100-25-FA;
  • Specification
  • Bore(mm)
    32
    40
    50
    63
    80
    100
    Active way
    Double acting
    Working me
    air
    Fix type
    (BASIC TYPE)FA LB TC TC-M
    The range of pressure Kgf/c㎡
    1~9.0
    Promised pressure(Kgf/c㎡)
    13.5
    The range of tempertaure(℃)
    ~5~70
    The range of speed (mm/sec)
    30~800
    Cushion type
    adjustable cushion
    Cushion stroke(mm)
    24
    32
    The bore of the mounting
    PT1/8
    PT1/4
    PT3/8
    PT1/2
  • Stroke
  • Bore（mm)
    Standard stroke
    Manx stroke
    admitied stroke
    32
    25 50 75 80 100 125 150 160 175 200
    200
    300
    40
    25 50 75 80 100 125 150 160 175 200
    200
    300
    50
    25 50 75 80 100 125 150 160 175 200
    200
    300
    63
    25 50 75 80 100 125 150 160 175 200
    200
    300
    80
    25 50 75 80 100 125 150 160 175 200 250 300
    300
    400
    100
    25 50 75 80 100 125 150 160 175 200 250 300
    300
    400
  • If you need special stroke cylinder please contact our company.

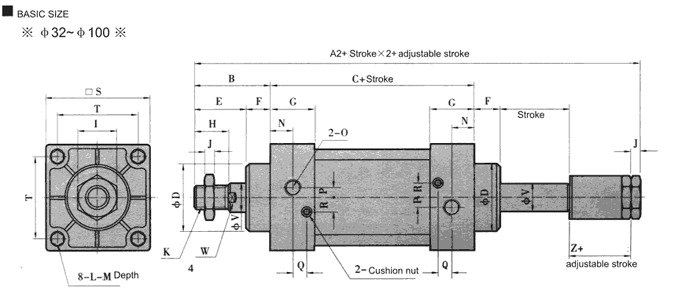

  • Bore/Siqn
    A2
    B
    C
    D
    E
    F
    G
    H
    I
    J
    K
    L
    32
    182
    47
    93
    28
    32
    15
    27.5
    22
    17
    6
    M10*1.25
    M6*1
    40
    185
    49
    93
    32
    34
    15
    27.5
    24
    17
    7
    M12*1.25
    M6*1
    50
    196
    57
    93
    38
    42
    15
    27.5
    32
    23
    8
    M16*1.5
    M6*1
    63
    199
    57
    96
    38
    42
    15
    27.5
    32
    23
    8
    M16*1.5
    M8*1.25
    80
    242
    75
    107
    47
    54
    21
    33
    40
    26
    10
    M20*1.5
    M10*1.5
    100
    248
    75
    113
    47
    54
    21
    33
    40
    26
    10
    M20*1.5
    M10*1.5
  • Bore/Sign
    M
    N
    O
    P
    Q
    R
    S
    T
    Y
    W
    Z
    32
    9.5
    13.7
    PT1/8
    3.5
    7.5
    7
    45
    33
    12
    10
    21
    40
    9.5
    13.5
    PT1/4
    6
    8.2
    9
    50
    37
    16
    14
    21
    50
    9.5
    13.5
    PT1/4
    8.5
    8.2
    9
    62
    47
    20
    17
    23
    63
    9.5
    13.5
    PT3/8
    7
    8.2
    8.5
    75
    56
    20
    17
    23
    80
    11.5
    16.5
    PT3/8
    10
    9.5
    14
    94
    70
    25
    22
    29
    100
    11.5
    16.5
    PT1/2
    11
    9.5
    14
    112
    84
    25
    22
    29
