Mini pneumatic cylinders MAJ,MACJ,China Zongjiu Machinery

Our products include hydraulic cylinder, pneumatic cylinder,solenoid valve, quick joint and other pneumatic and hydraulic component.

Mini pneumatic cylinders
Mini pneumatic cylinders

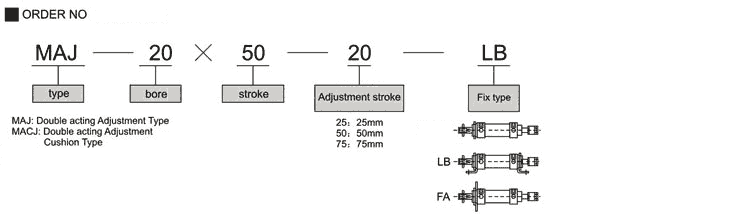

For example:
1. If you want to order cylinder with 20mm bore, 50mm stroke, Adjustment stroke is 25mm, which is the double rod double acting adjustment type mini pneumatic cylinder adopting LB fix type, the right order Number is:MAJ-20×50-25-LB;
2. If you want to order cylinder with 32mm bore, 100mm stroke, Adjustment stroke is 25mm, which is the double rod double acting adjustment cushion type mini pneumatic cylinder adopting FA fix type, the right order Number is:MACJ-32×100-25-FA;
